| Fitting the Tub on the Chassis | |

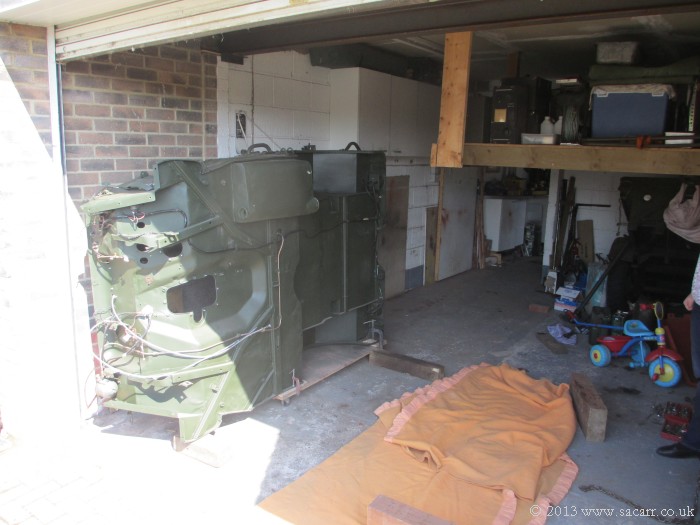

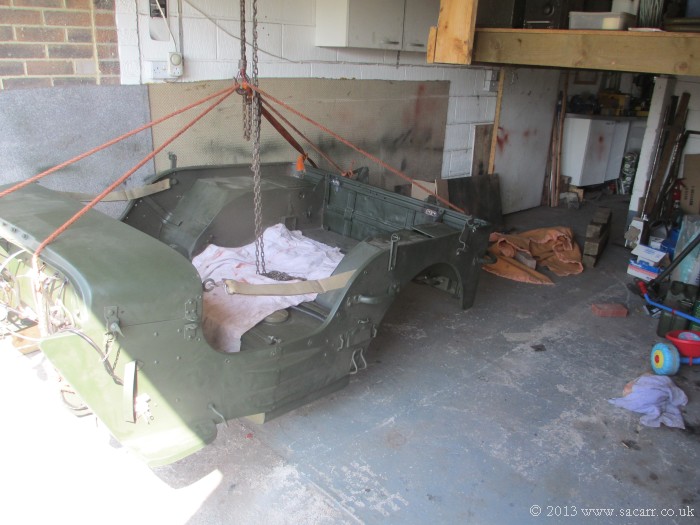

| The first job was to wheel the tub from the workshop to the garage on the wooden trolley. | Next the tub was tipped upright and suspended from the engine hoist. |
|
|

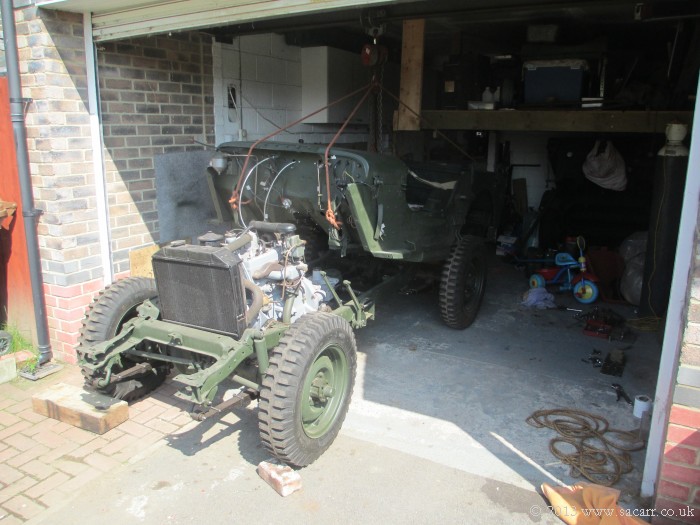

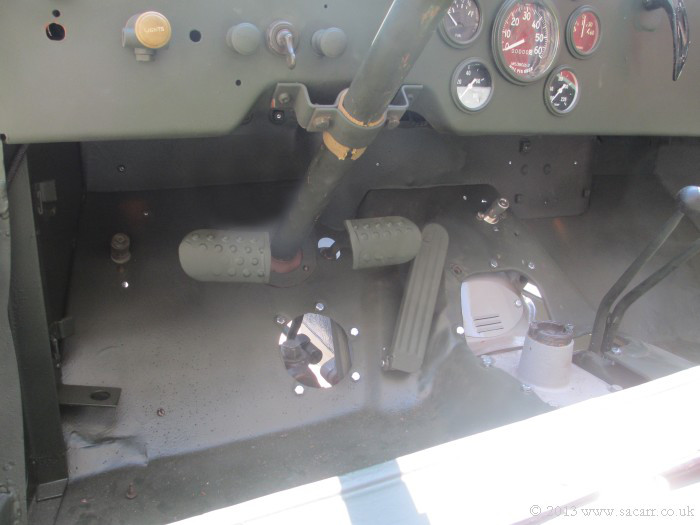

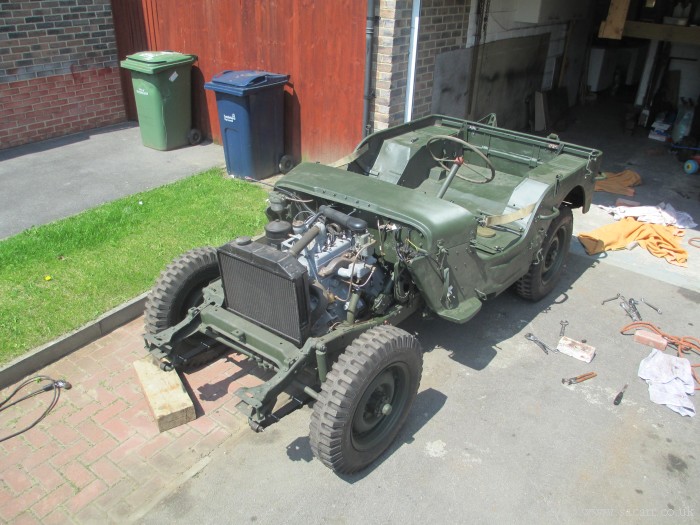

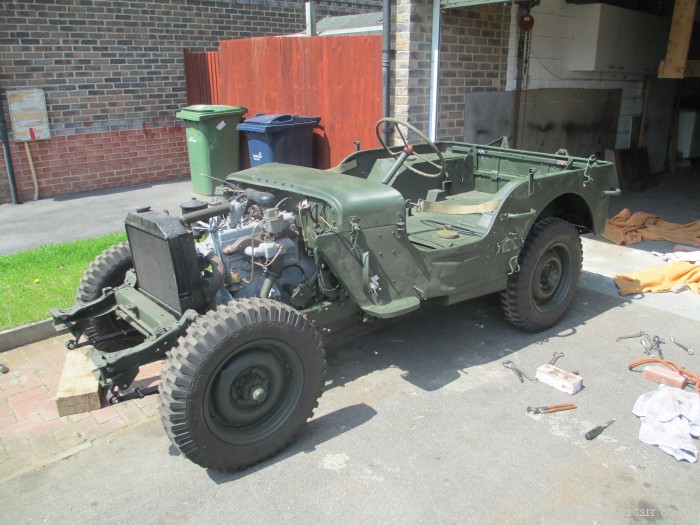

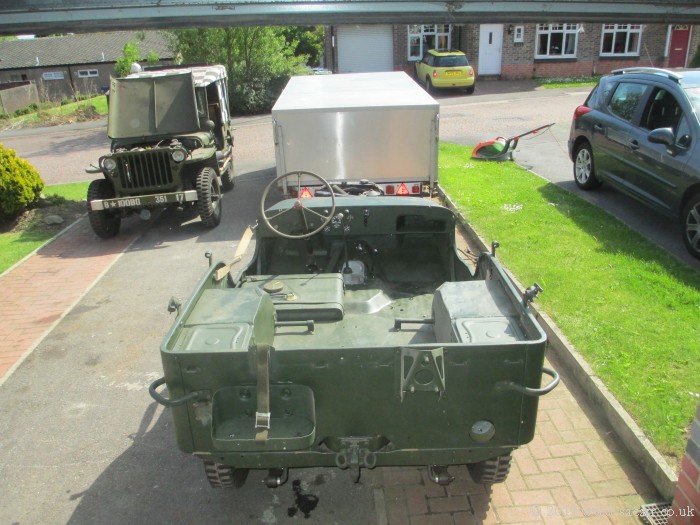

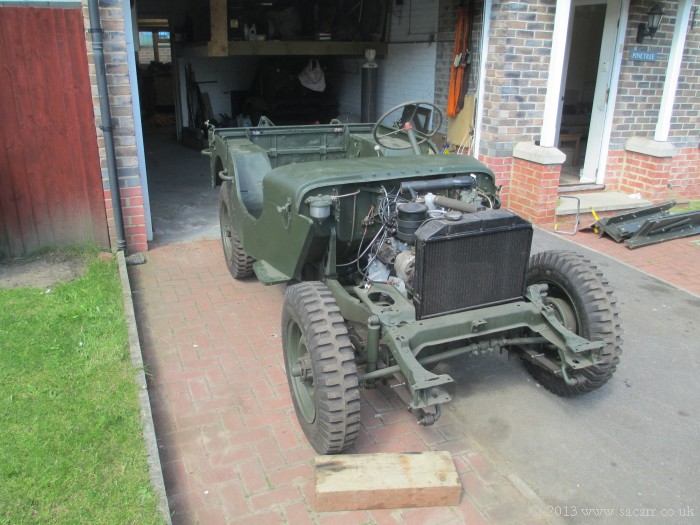

| The chassis was then rolled back under the tub, and two rear bolts fitted to align it. The front was then lowered into place. The steering column came next, followed by the right side handles and bow brackets that had been left off while the tub was on its side on the trolley. | |
|
|
|
|
|
|
|
|
|
