Maintenance 3

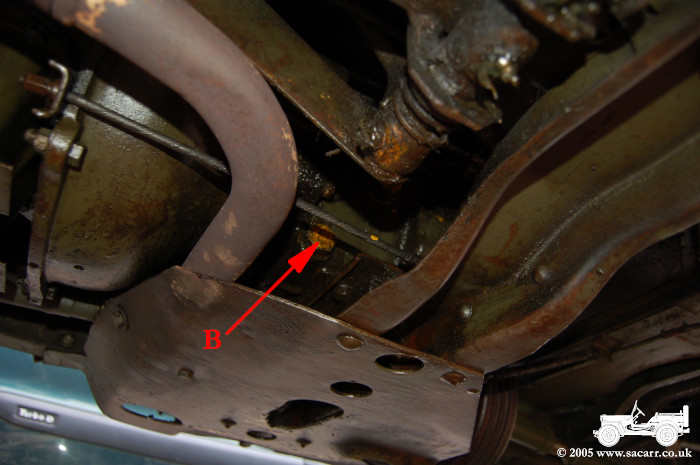

Transmission Replace Oil Every 6000 Miles Capacity - 3/4 Quarts Grade - SAE 90 The transmission has its fill plug ( 'A' ) on the top left side, just above the chassis cross member ( early transmissions had it on the right ). The drain plug ( 'B' ) is lower and just ahead of the cross member. Access is between the exhaust and cross member, and as the oil is drained warm, caution must be taken with the hot exhaust. |
Transfer
Case Replace Oil Every 6000 Miles Capacity - 1 1/2 Quarts Grade - SAE 90 The transfer case has its fill plug ( 'A' )
on the top right side. The drain plug is on the bottom. |
Oil Filler, Filter & Sump Check Level Daily Capacity - 5 Quarts Dry ( 4 Qt Refill ) Grade - SAE 30 The oil filler neck and dipstick ( 'A' ) and oil filter housing ( 'B' ) are shown above. Check oil level daily. Drain sediment every 1000 miles. Replace element every 6000 miles. The engine oil drain plug is located on the left side of the sump, and can be seen looking to the rear of the front wheel and ahead of the spring anchor. |
|
|
|

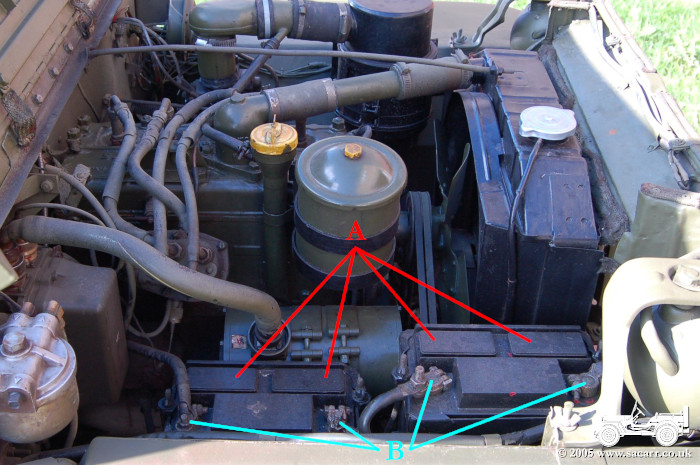

Battery Check Water Level Weekly Hotchkiss Jeeps usually have two 12v batteries, Willys and Ford Jeeps normally have one at 6v or 12v. Check water level ( 'A' ) is 1/2 inch over plates and that battery is not leaking. Top up with distilled water. Check for corrosion on terminals ( 'B' ) and battery tray. |
Air Filter Check Oil Level Weekly Capacity - 5/8 Quarts On the Hotchkiss Jeep, because of the second battery, the air filter is on the left side of the engine bay. On the Willys and Ford, it is on the right. Clean air cleaner element and check oil level weekly. |

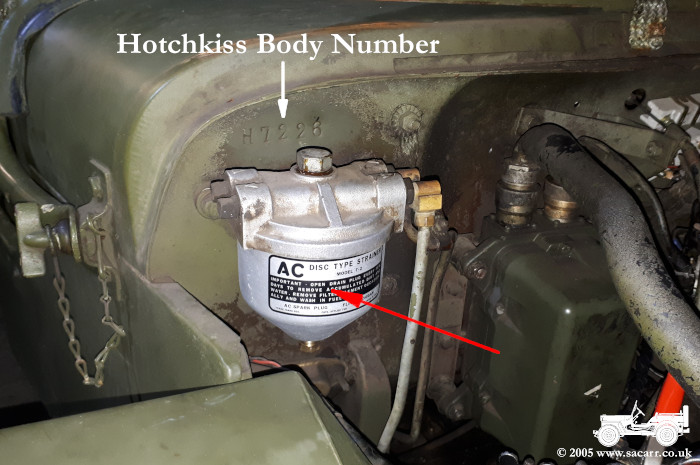

Fuel Filter Drain Sediment Weekly The fuel filter is mounted on the front of the dash, on the left when facing the rear of the vehicle. Check for leaks and unscrew the plug and drain weekly. Ensure no fuel spills onto the starter motor during draining. |

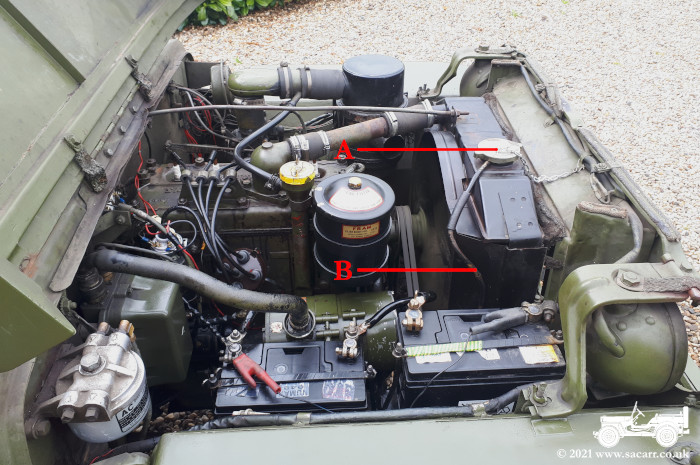

Radiator Check Level Daily Capacity - 11 Quarts Check the radiator ( 'A' ) level daily and top up until water is visible. Excess will be expelled via the overflow pipe ( 'B' ). |
