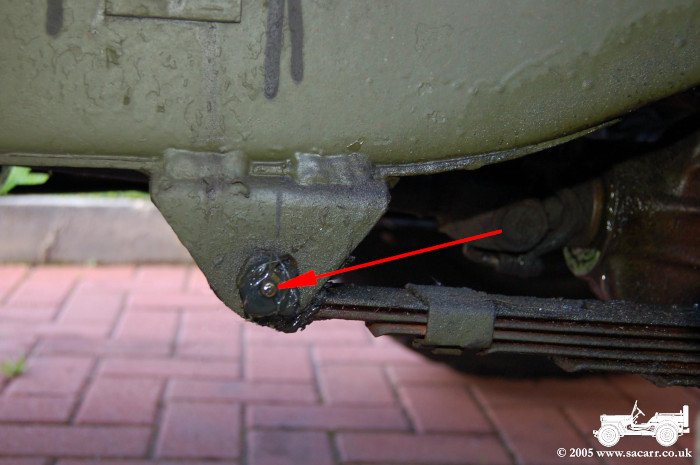

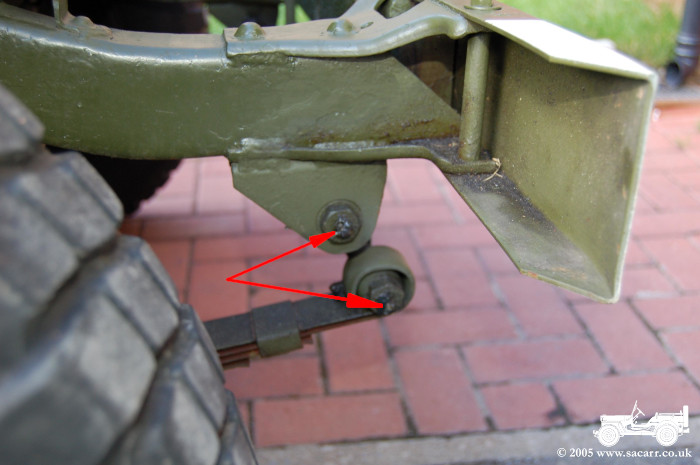

On the right side of the jeep, there are two grease nipples on the front spring shackle, and one at the anchor at the rear of the spring. On the rear of the left side spring, there is an additional torque spring which also has a grease nipple.

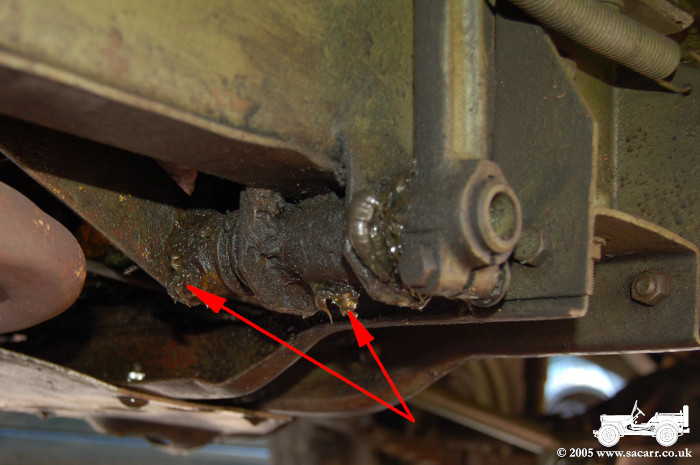

There are two nipples on the clutch and brake pedal shaft.

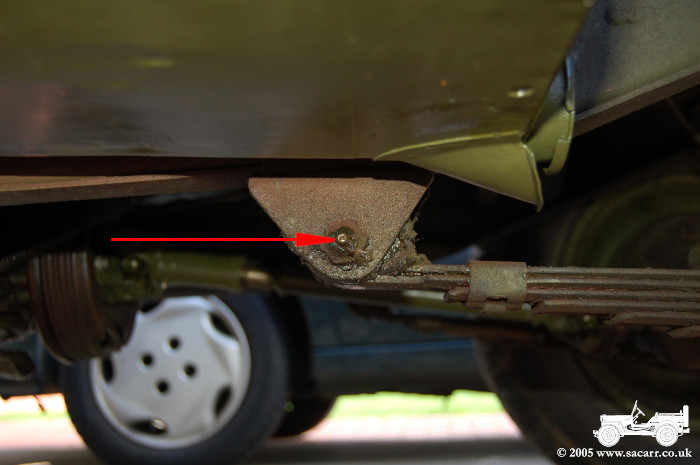

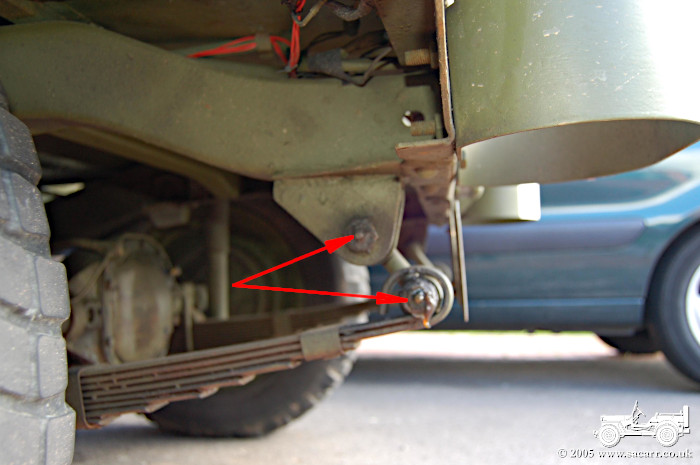

Both rear springs are identical, having a single nipple at the front anchor, and two on the shackle at the back.


Steering Bellcrank

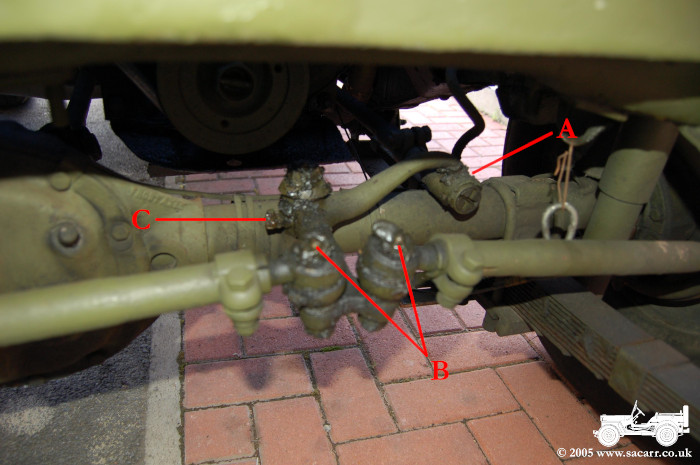

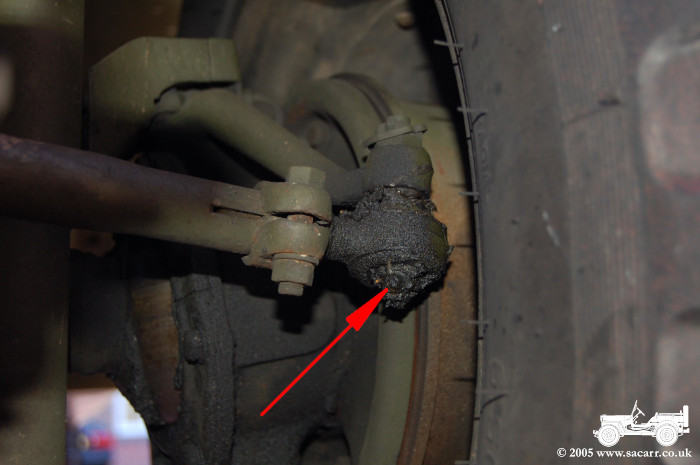

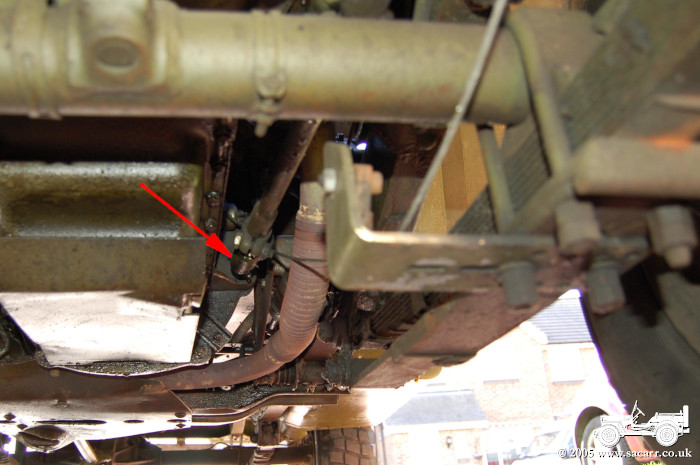

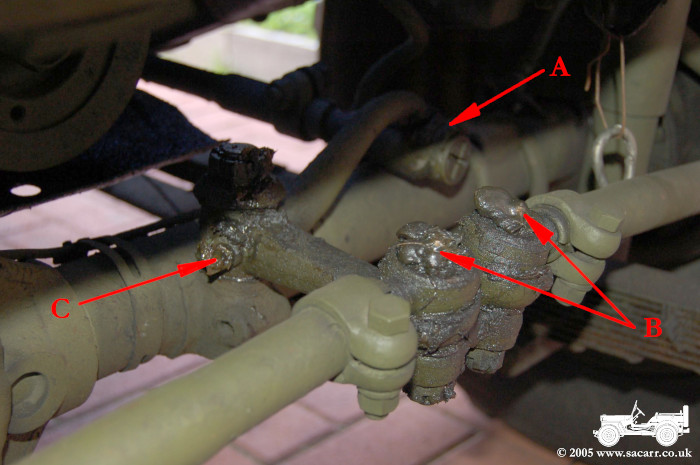

There are several grease points around the steering bellcrank. Point 'A' is on the pushrod between the steering gearbox and the bellcrank. Shown in the next picture, is a second grease point at the other end of the drag link, where it attaches to the steering box. Points 'B' are the inner ends of the tie rods on the bellcrank, also shown in the picture to the right. Point 'C' is the bellcrank pivot. The picture to the right shows the grease point on the outer end of the tie rod.

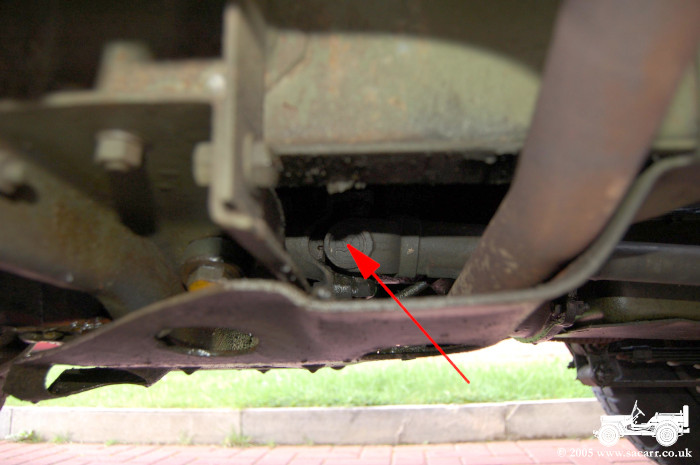

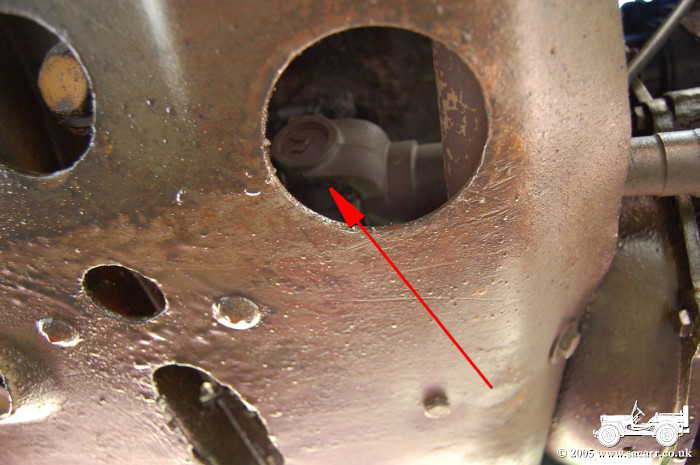

These pictures show the rear end of the front prop shaft. The two, difficult to reach grease points, are on the crucifix of the universal joint, and on the shaft itself for the sliding joint. Both are hidden by the skid plate. The front end of the shaft has one grease point on the crucifix joint ( 'A' ). Also shown is the front diff drain plug ( 'B' ).

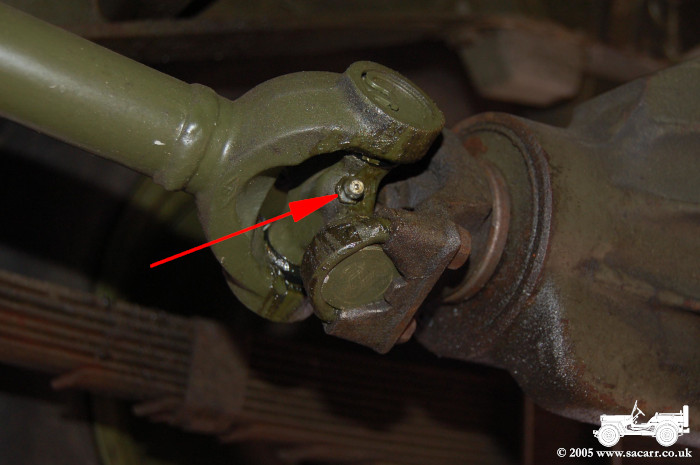

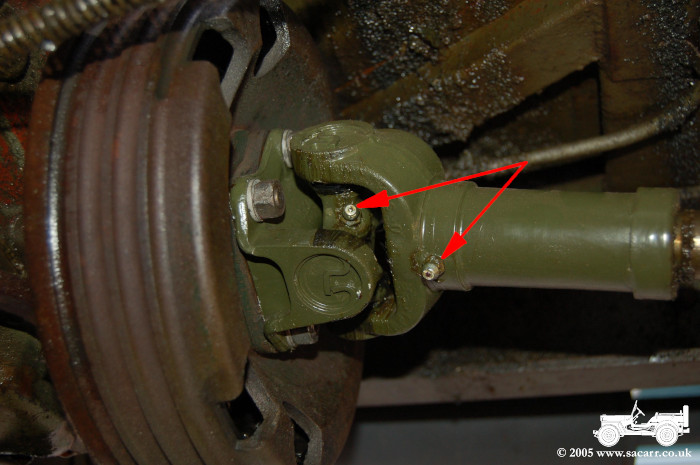

The rear shaft is much easier to assess. There are three grease points in total. There is one on each crucifix joint and the third is at the handbrake end of the shaft for the sliding joint.
