Fitting out the Tub

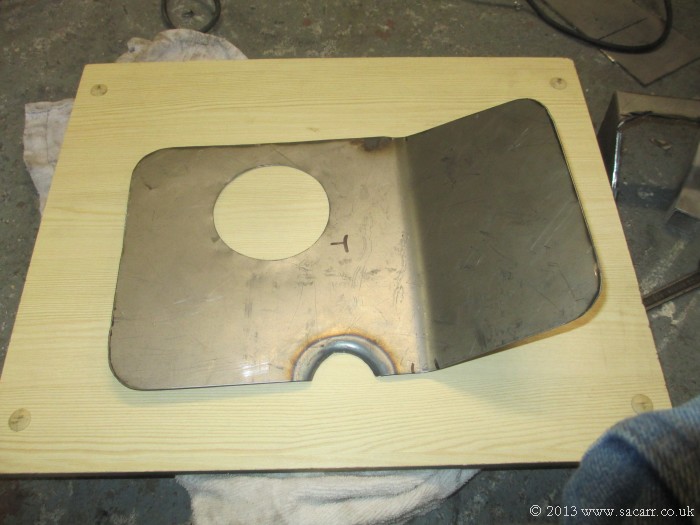

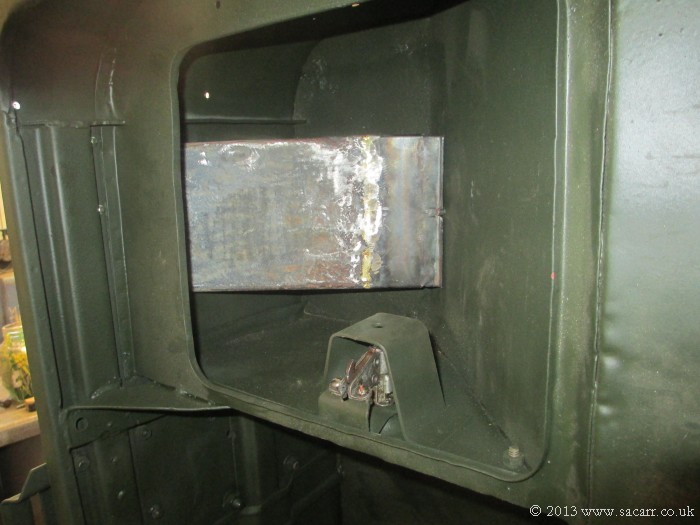

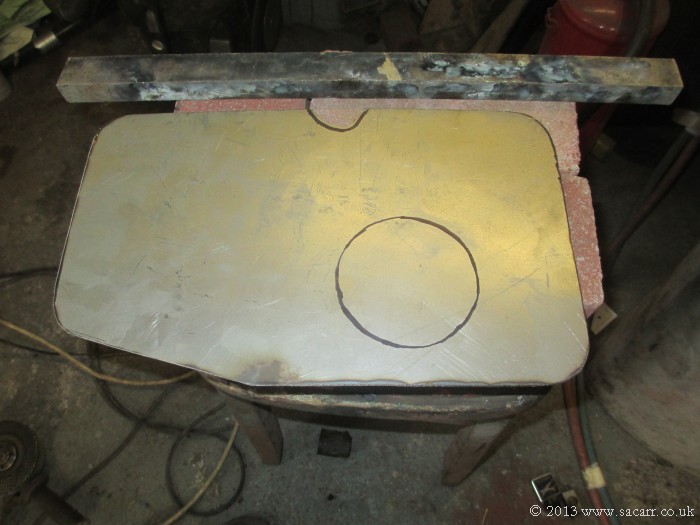

Socket shield test fitted. The start of a new transmission cover.

May 30th

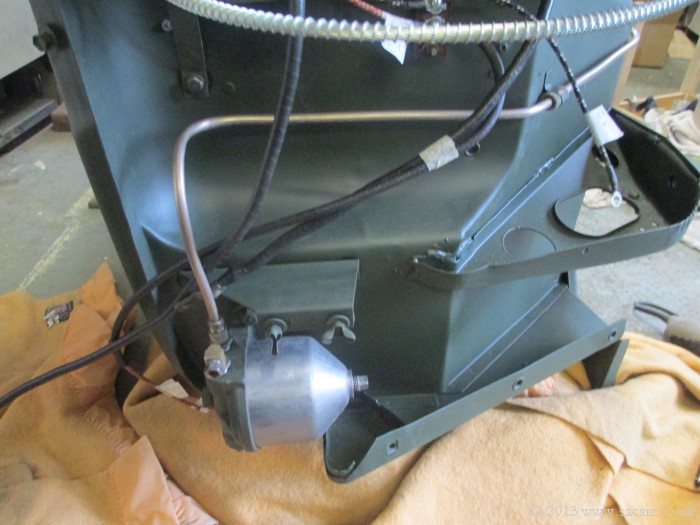

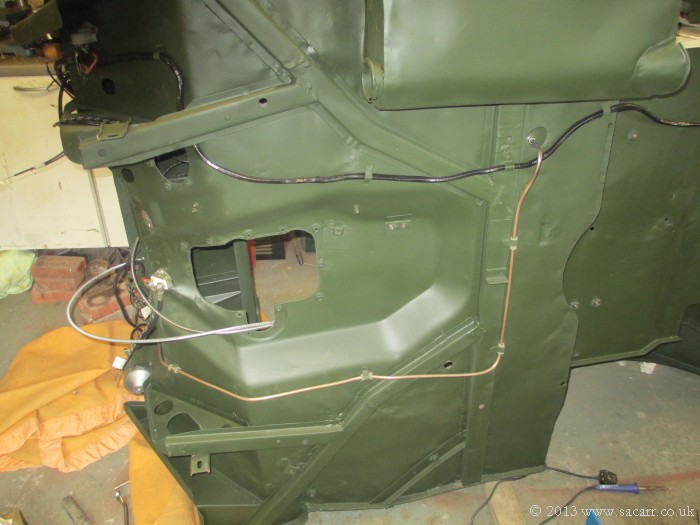

Above - The fuel line was made and fitted between the tank and the fuel filter.

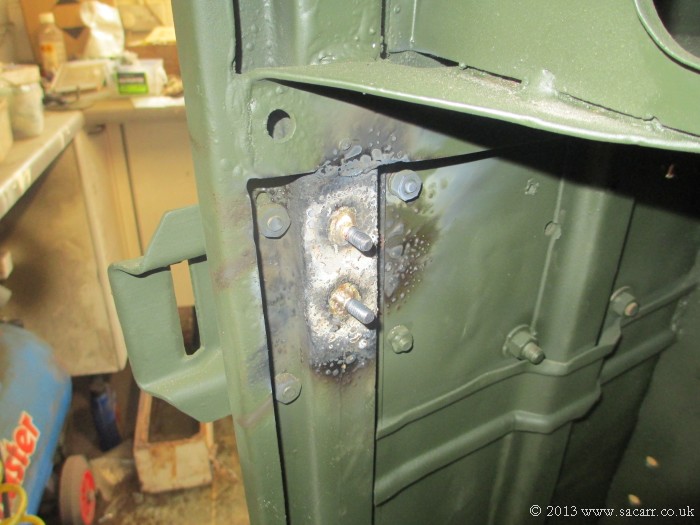

Below Left - While browsing the net, looking at another Jeep restoration, I realised that the bolts for the rear seat clips were missing. Worse still, was that they are blind bolts, fitted to the inside of the hat channel.

The only way to make a repair was to cut some long threads that pass through the hat channel, but not through the rear skin of the tub. The studs were then brazed at the surface of the hat channel, unfortunately damaging the surrounding paint at the same time.
