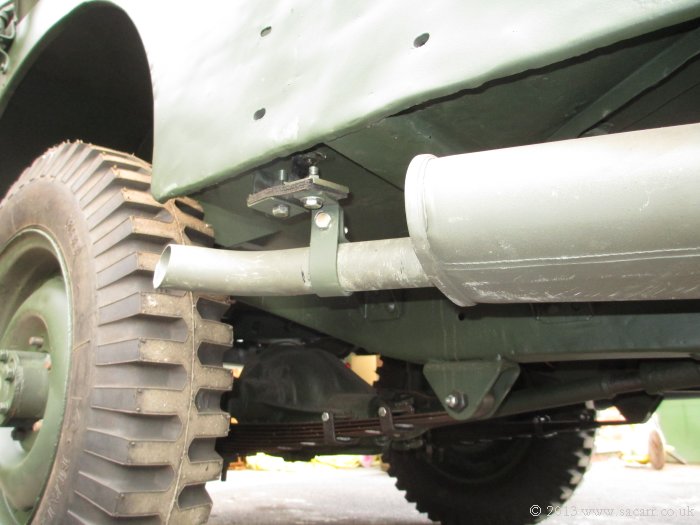

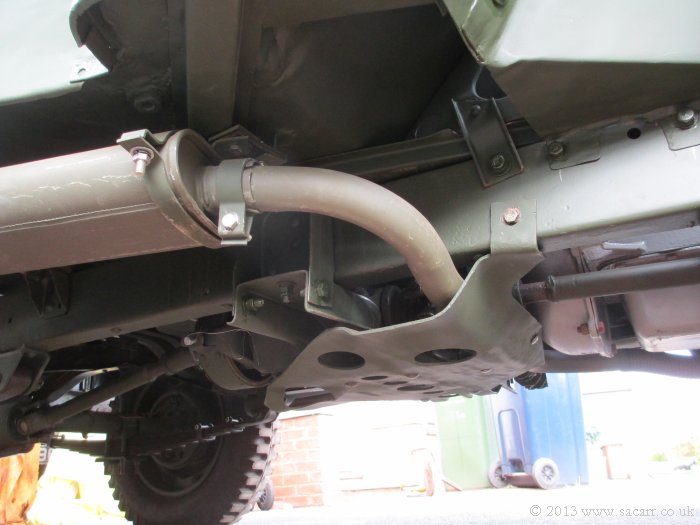

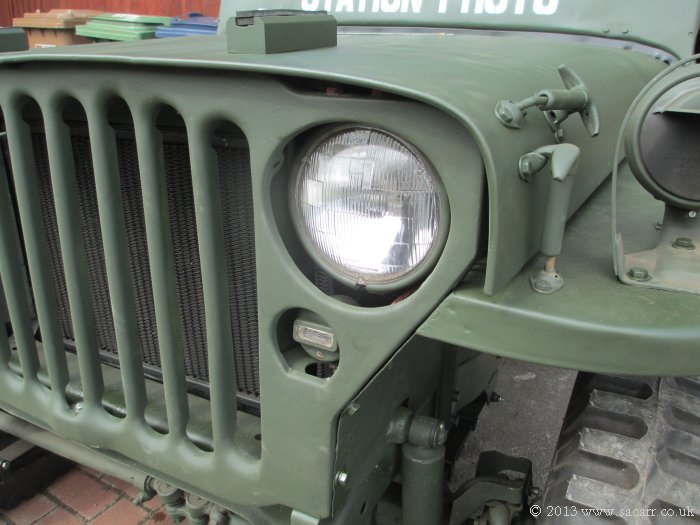

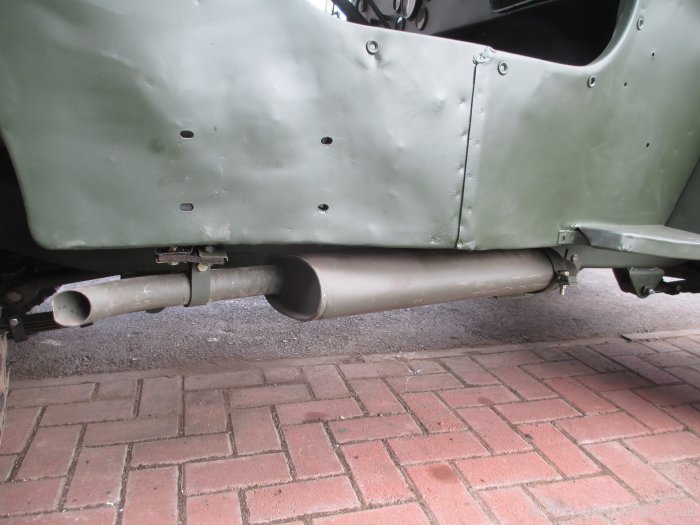

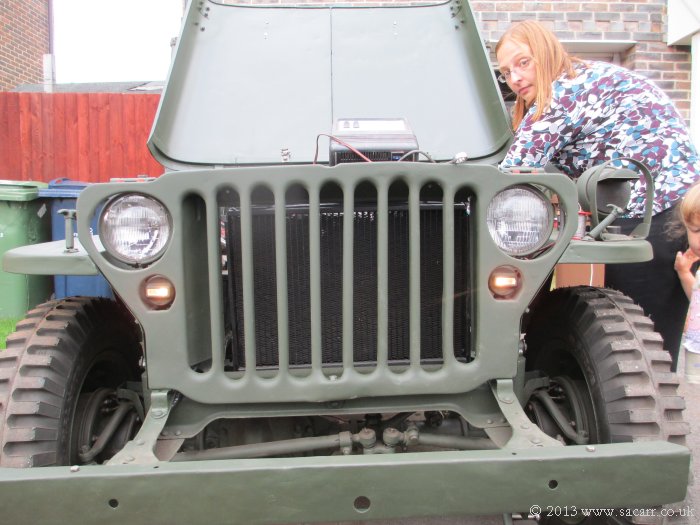

| The head light bowls and marker lights installed. | Exhaust fitted. |
|
|
|
|

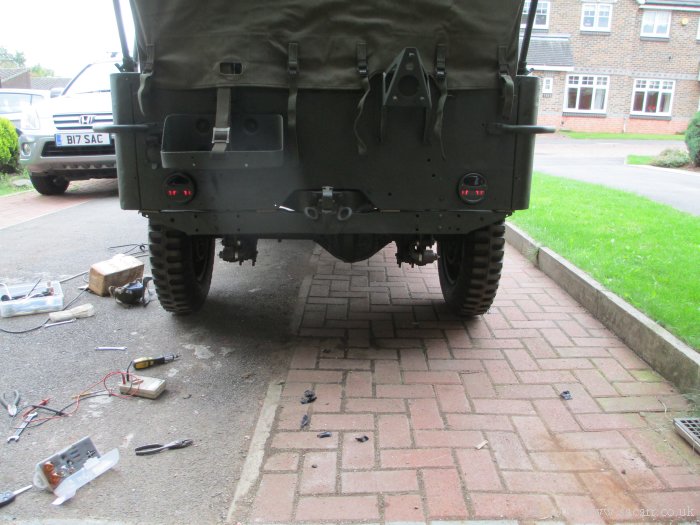

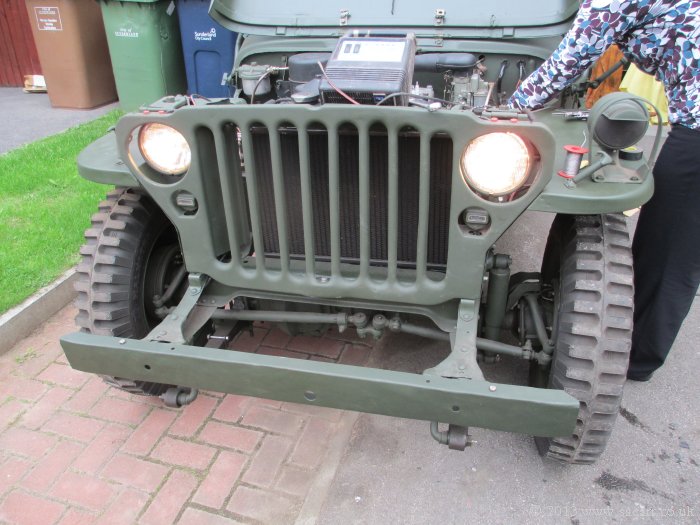

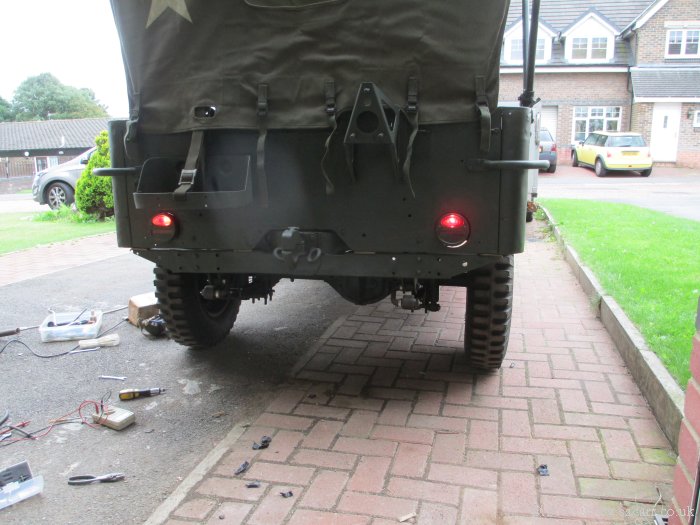

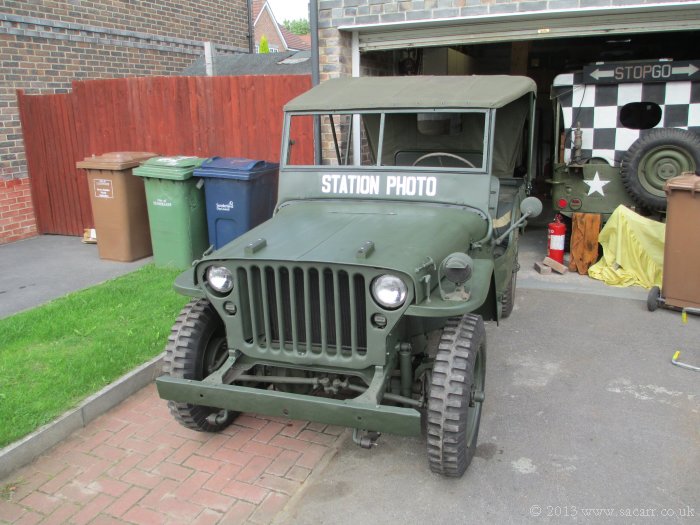

| The inner screen frame fitted. The rubber seals were lubricated with Vaseline to help them to slide into the frame, and the frame itself was lubricated along its hinge to help it to slide into the outer frame. The canvas roof from my other Jeep was also trial fitted to check the screen rake and roof bows. Below right, the electrics come to life as the marker lights are switched on. Just a few earth issues which needed sorting to get them both to light up. Head lights and tail lights came next. | |
|
|
|
|
|
|
|
