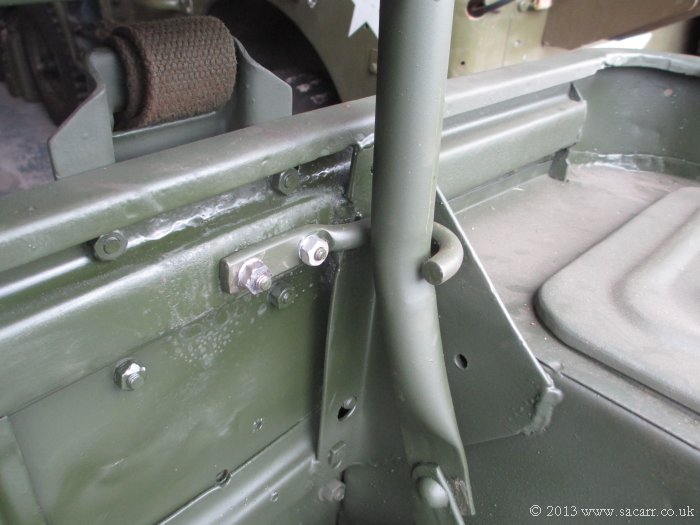

| The
back rest of the rear seat is held by these clips, bolted to the studs
that were fitted into the hat channel |

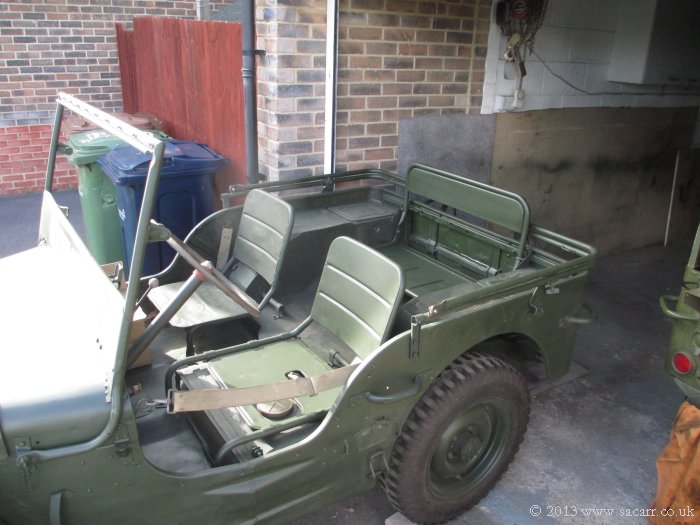

All of the seats are now fitted, though still awaiting cushions. I should be able to screw on the cushions with the seats in place. |
|
|

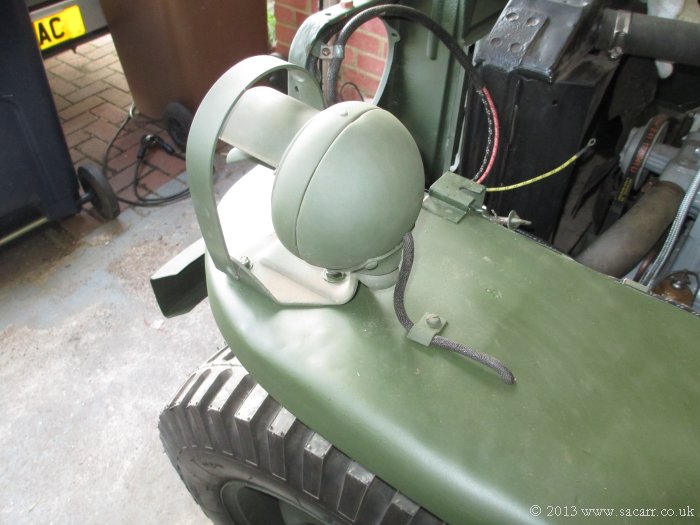

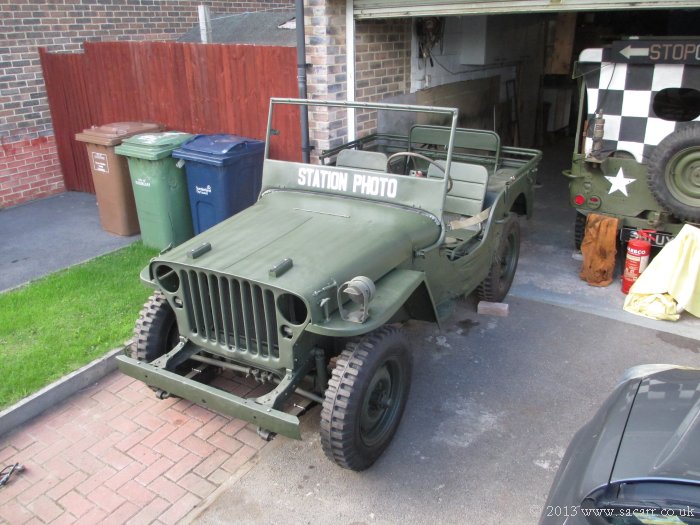

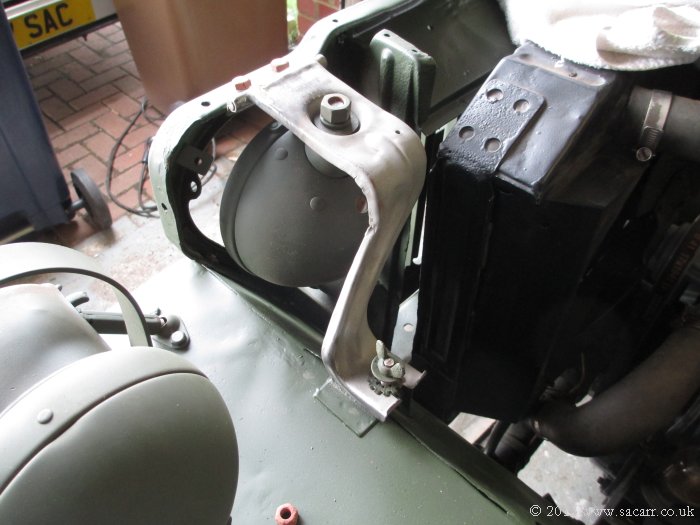

| The black out light and hood clamps are fitted in this shot, and the Jeep is looking pretty complete. The hood bows are also fitted, though needed a little bending to slide more smoothly. | With the fenders and grill fitted, the head light brackets could be trial fitted and adjusted to fit correctly. They needed a little brazing to repair some cracks. |
|
|

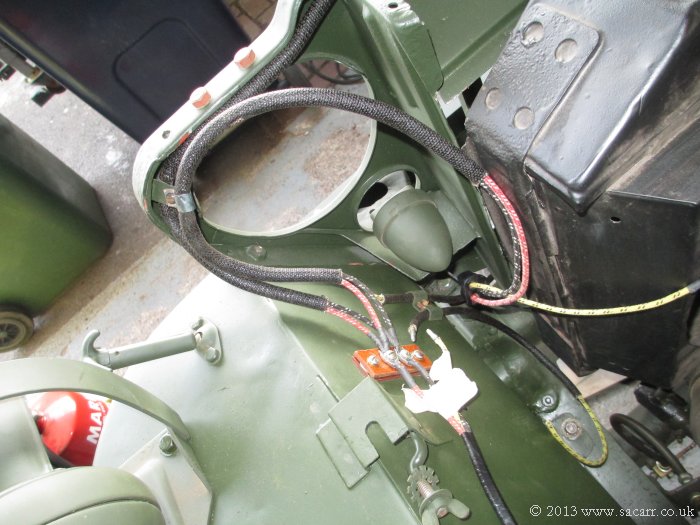

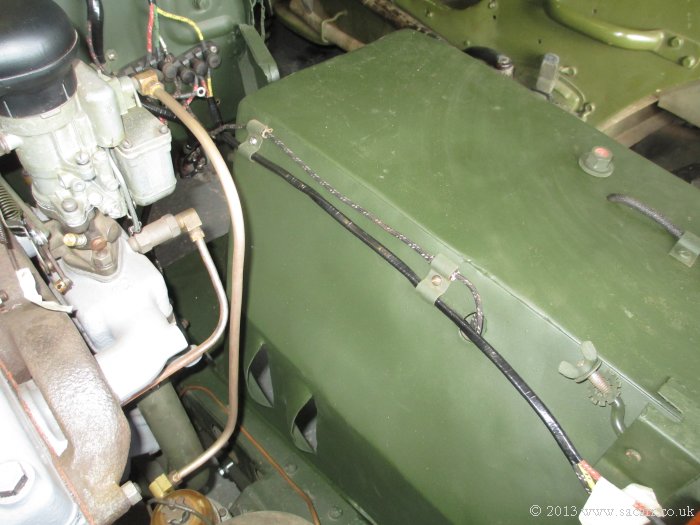

| With the fenders fitted, it allowed the front wiring harnesses to be fitted. | |
|
|
|
|

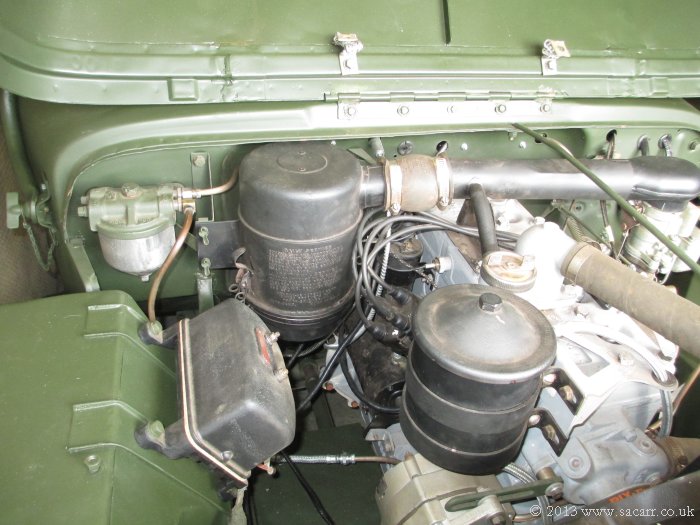

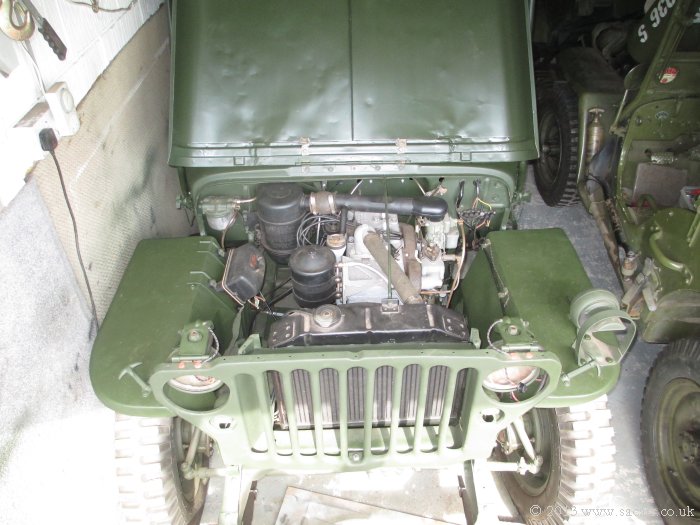

| The airfilter fitted. | The engine bay is pretty much complete, except for battery. |
|
|
|
