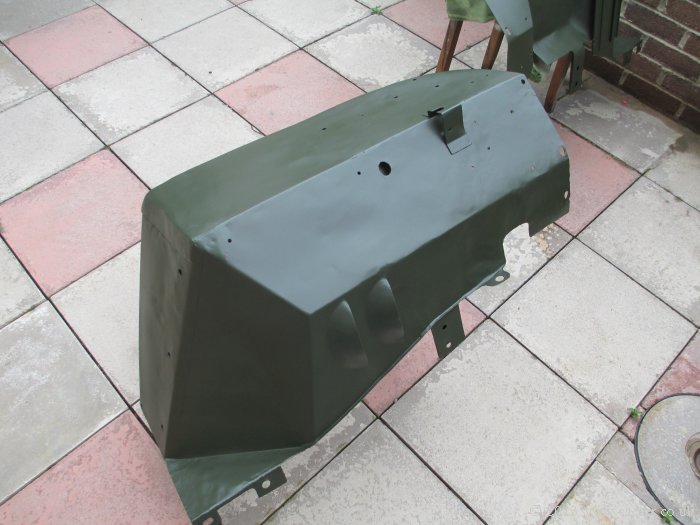

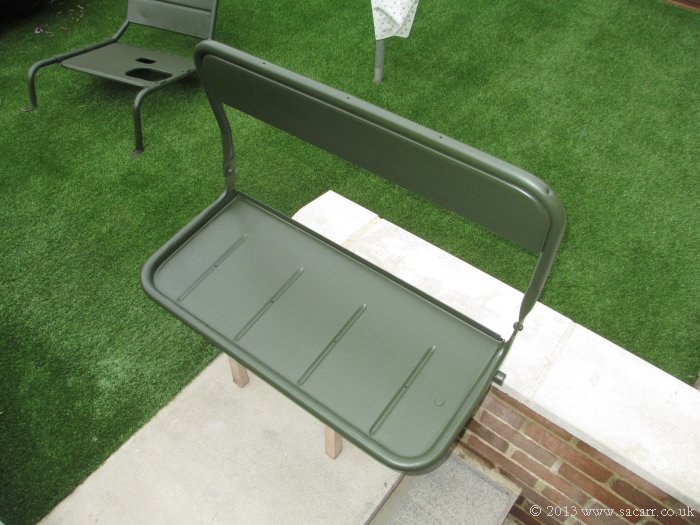

| More parts drying, including the rear and drivers seat. | |
|
|

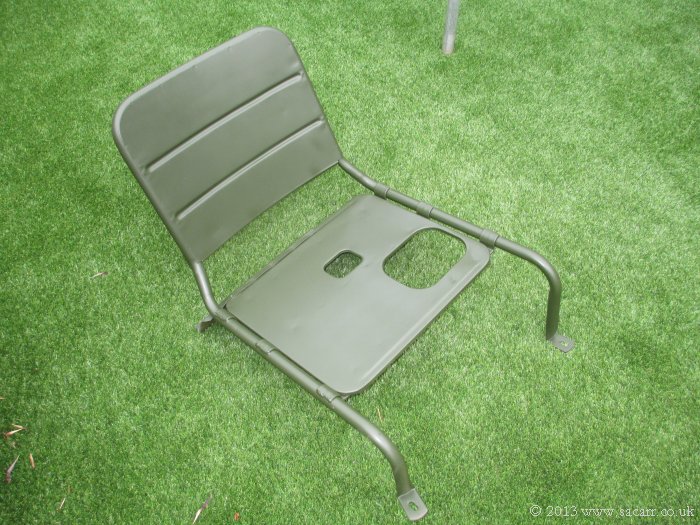

| Close
up view of the drivers seat. |

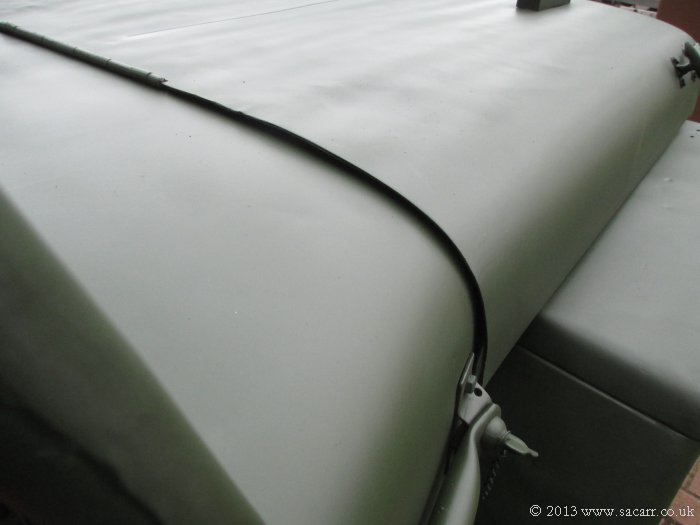

The hood needed a little bending to get it to follow the instrument panel cowl with an even gap. |
|
|

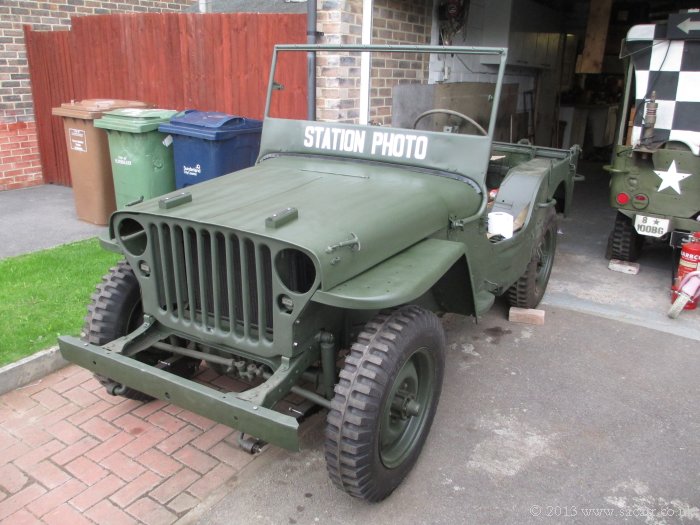

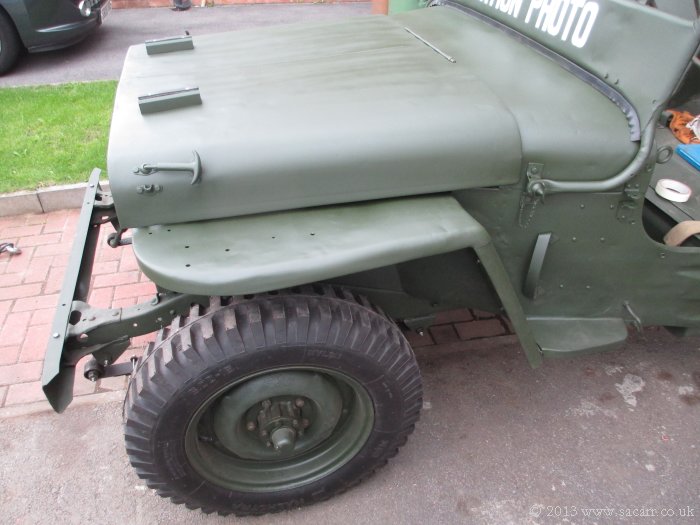

| Fenders, grill and hood fitted hopefully fo the last time. | |
|
|

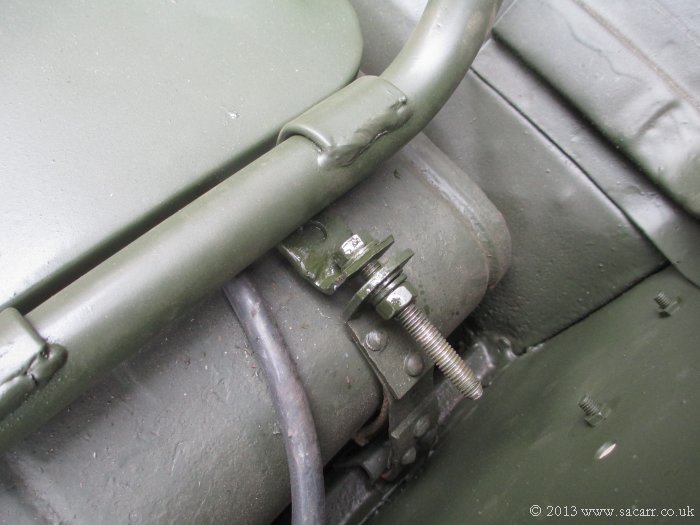

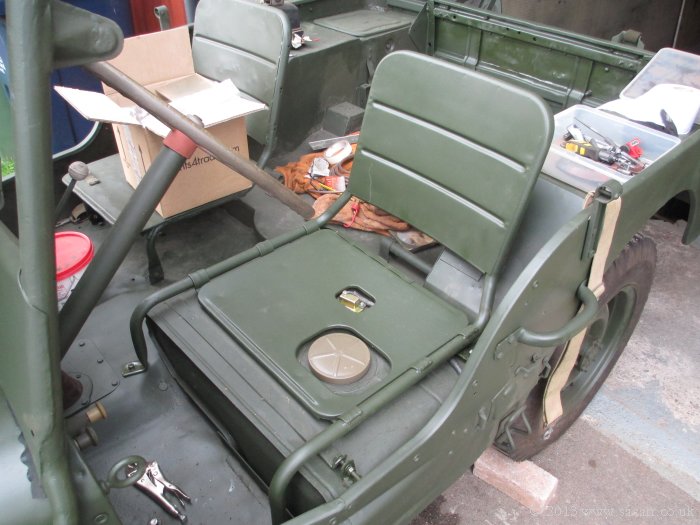

| Fitting the drivers seat didn't go smoothly, as the tank strap bracket and bolt interfered with the seat frame. It is seen below after extending the strap to bring it outside the frame. Finally after much messing around, the seat was in. | |
|
|

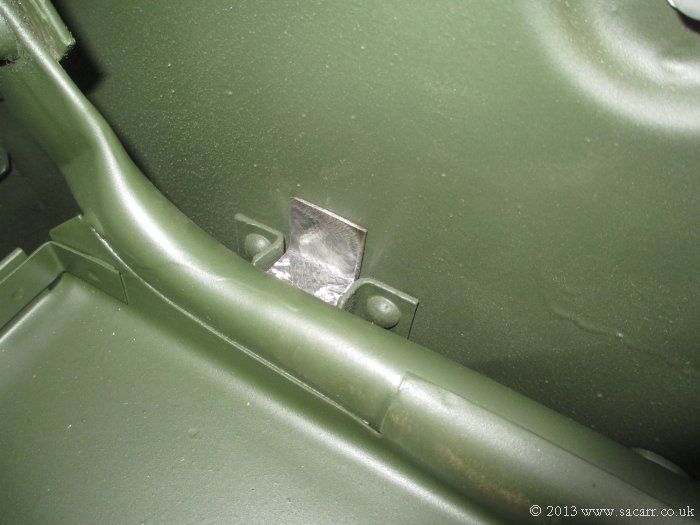

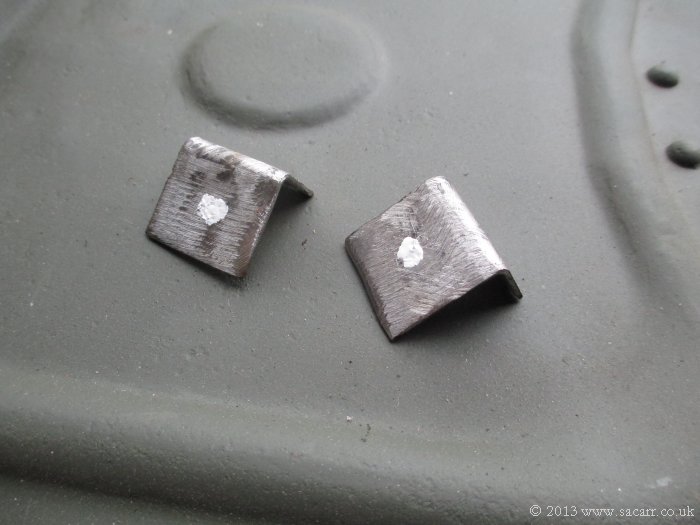

| The rear seat frame needed some small brackets making to hold the pivot into the Jeep body. | Here's the bracket in place, but prior to drilling the hole for the retaining bolt. |
|
|
|
