Three Page Updates - Apr 4th '18 - Apr 9th '18 - Apr 10th '18 |
|

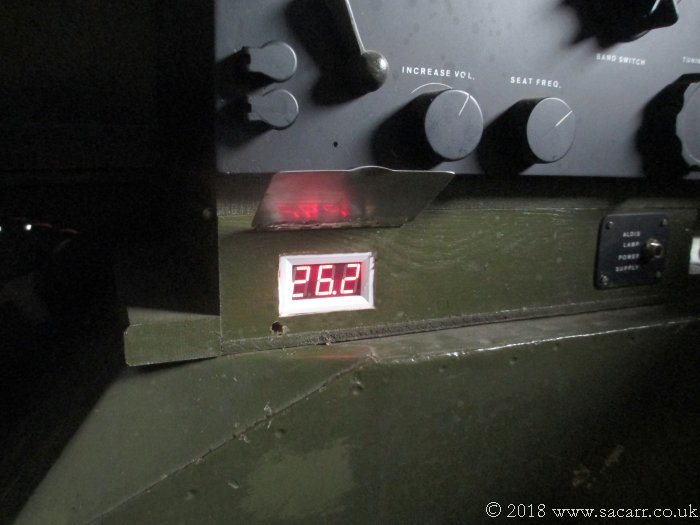

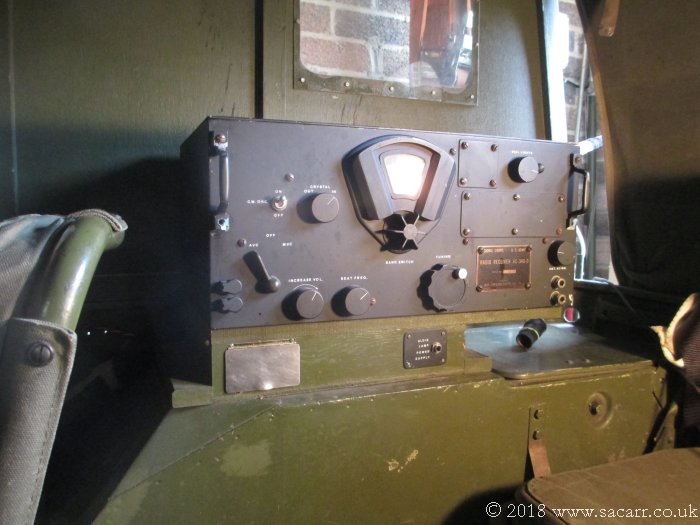

| Following the fitting of the new batteries and adjusting the voltage regulator, I decided a way of monitoring the charge voltage was needed. There wasn't anywhere an analogue voltmeter would fit, and I couldn't find a small unit in the correct voltage scale. That left a digital voltmeter. I didn't want the modern readout visible, so fitted the meter into the base of the radio tray and made a small metal flap to hide it. It runs from the same power supply that feeds the 24v to 12v converter hidden in the dummy radio. | |
|
|
|
| ----- | |
|

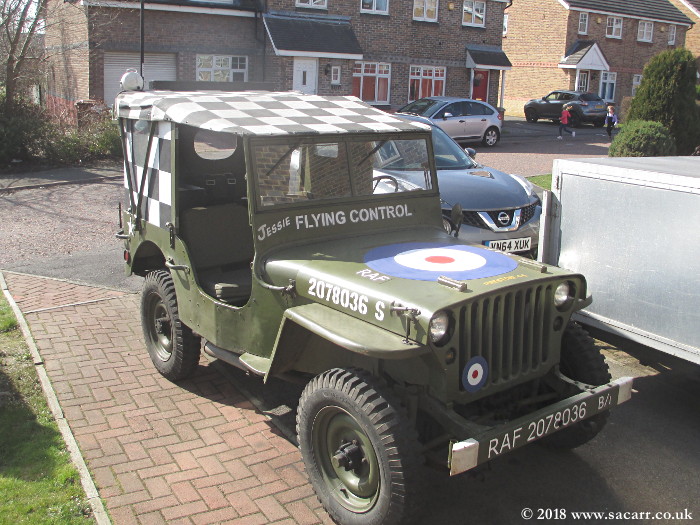

With a big drive to York on
the 15th, I wanted to have a bit of a start/stop test drive and also monitor the
battery charging under normal driving conditions.
I had a few jobs to do, including dropping in at the dodge yard for a new key and filling up the Jeep with fuel. Since it was still school holidays, took my little mechanic in the back seat to monitor the voltage gauge. The voltage was fairly consistent and within a sensible range - unlike before the regulator was adjusted. It was a nine mile round trip with several stops along the way where the engine was shut down. The engine restarted without any problems, so I'm happy that I've finally laid the starting troubles to rest. It was a chilly start to the morning, but got out to be a pleasant warm Spring day. |
|
| ----- | |
|

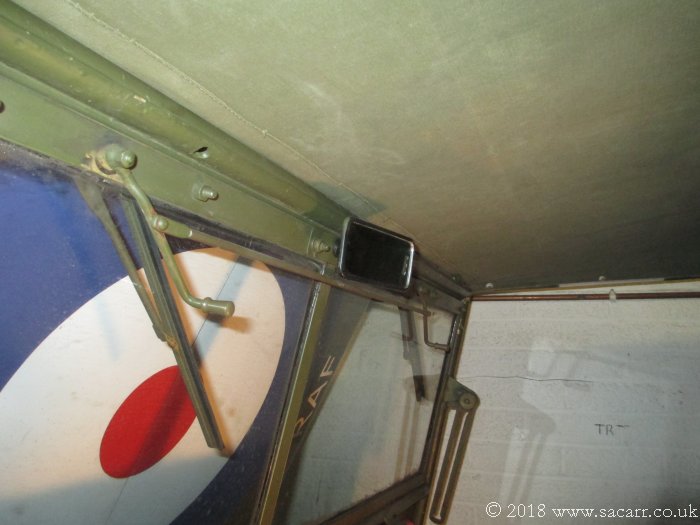

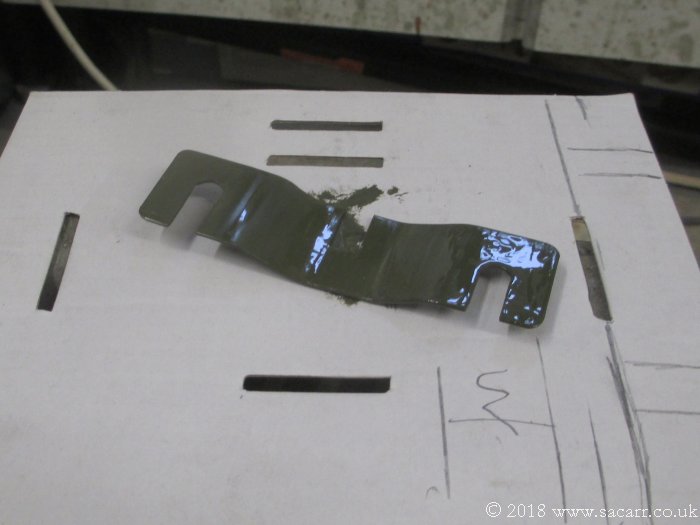

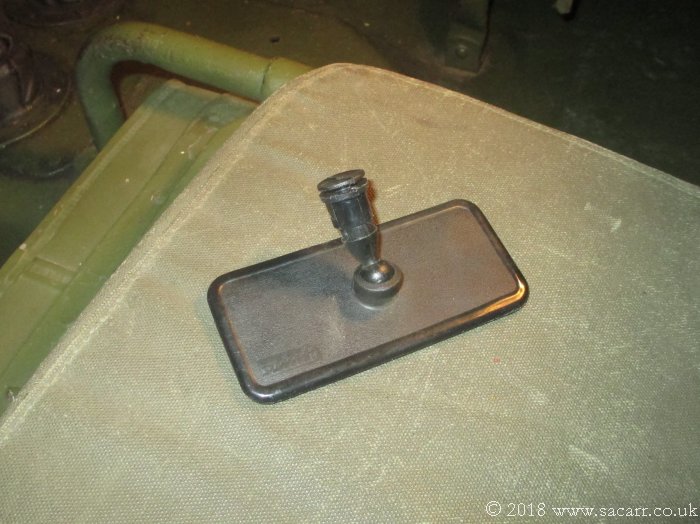

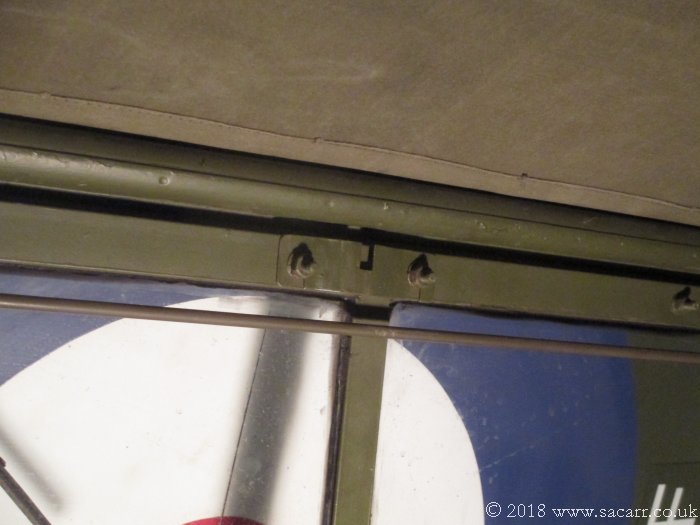

Over the winter, my suction rear view mirror lost its suck and refused to stick to the Jeep screen. I didn't want to spend on a new one and didn't want a permanent fixture, so set about adapting the broken one. I cut the sucker off and made a steel bracket that slotted behind existing bolts in the screen, left over from the French electric wipers. The bracket had a slot cut in the centre that would allow the mirror arm to slot into place when required. |
|
|
|
|
|
