| The roof canvas,
when not fitted to the vehicle, is stored under the passenger seat, held
in place with the straps shown to the right. The space below the seat
isn't that big so the canvas needs to be folded in a certain way in
order that it will stow correctly.
The photos below show the folding step by
step. |
 |

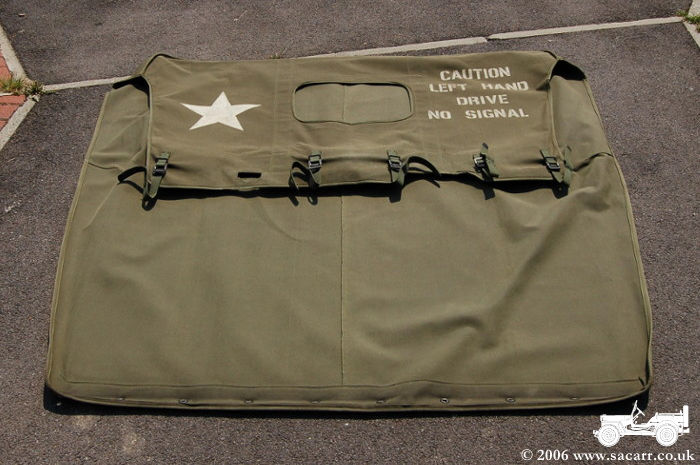

 Step 1 - Lay the canvas upside down on the ground and fold the back flat on top of the roof. |

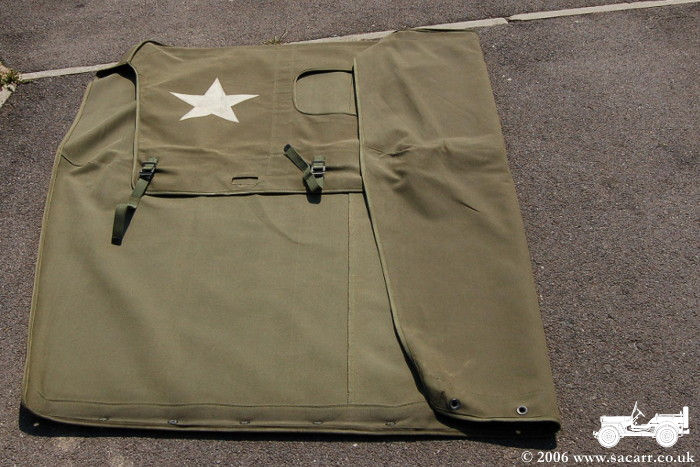

 Step 2 - Fold one side in until the edge meets the centre line of the canvas. |

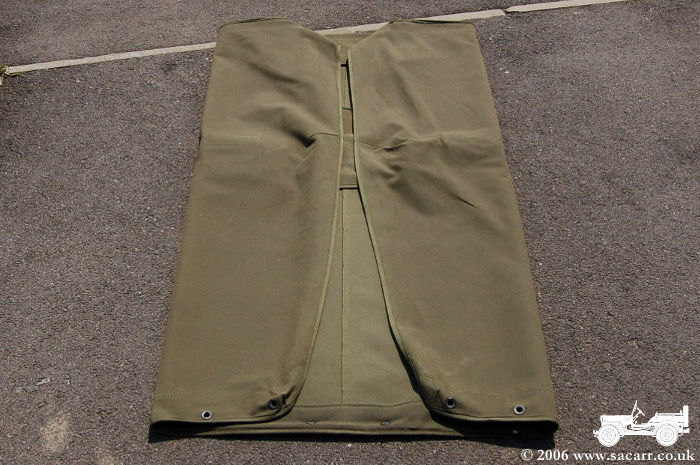

 Step 3 - Fold the second side in to meet in the centre. |

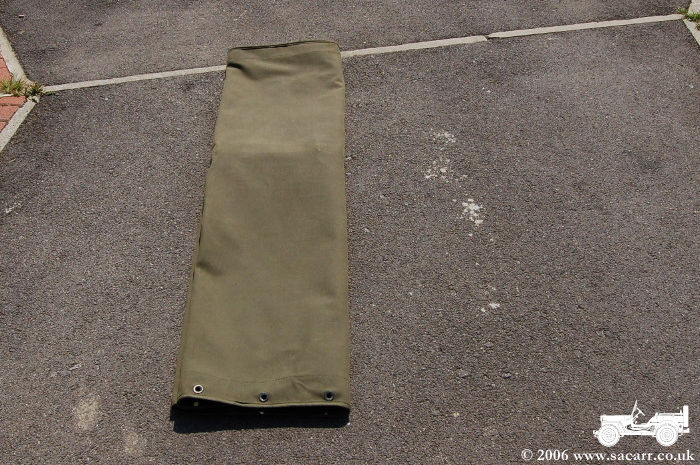

 Step 4 - Fold the first along the centre line, over the second side. |

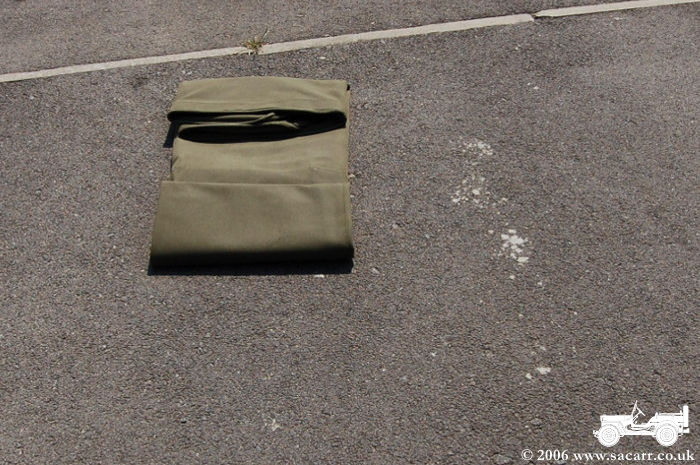

 Step 5 - Roll/fold the canvas, starting at the narrow end, but stopping short of folding completely. |

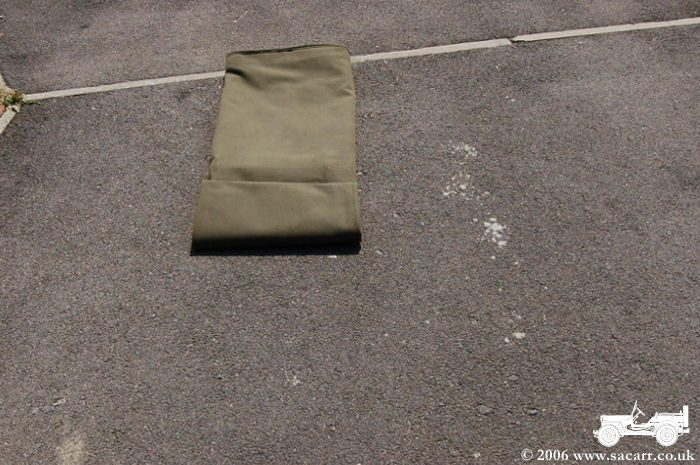

 Step 6 - Fold the wide end over once, towards the rolled end. This will keep the edges tucked away. |

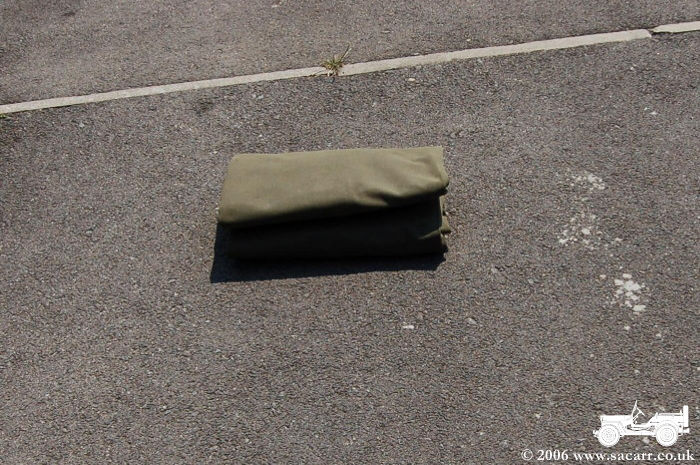

 Step 7 - Make one last fold which encloses the edges of the canvas. |

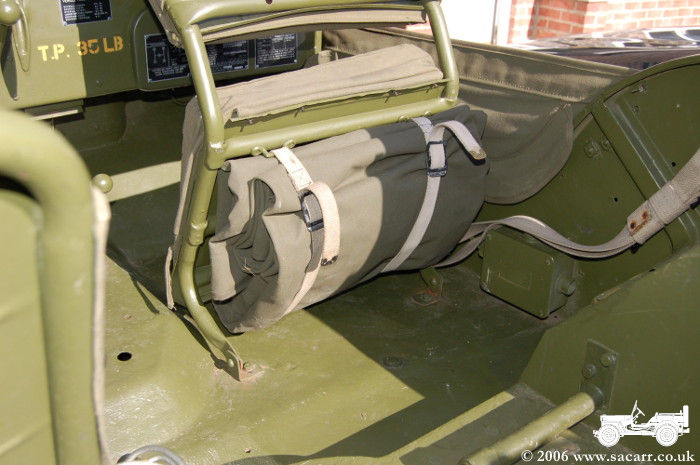

 Step 8 - The roof can now be strapped below the seat. |
