Ongoing Work
August 2015

Aug 19th

After the Croft show, the truck was caught out in heavy rain a few times without the tarpaulin covering it. I noticed that water was pooling on the cab canvas just behind the screen, and that it was leaking through.

Wednesday the 19th was a nice warm sunny day, so I spent the first part of the day painting some waterproofing solution over the canvas to seal it.

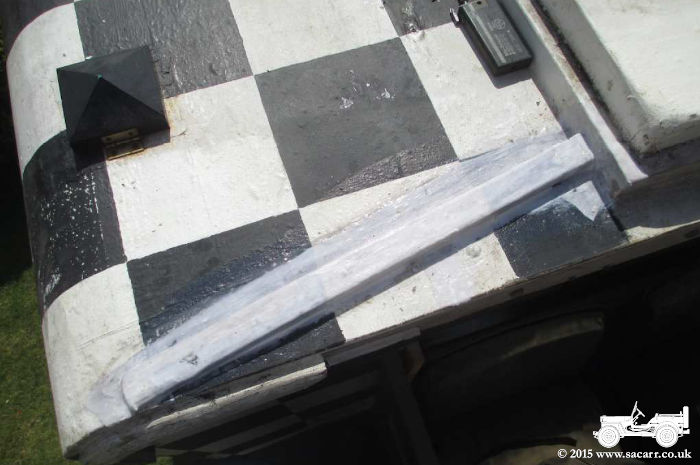

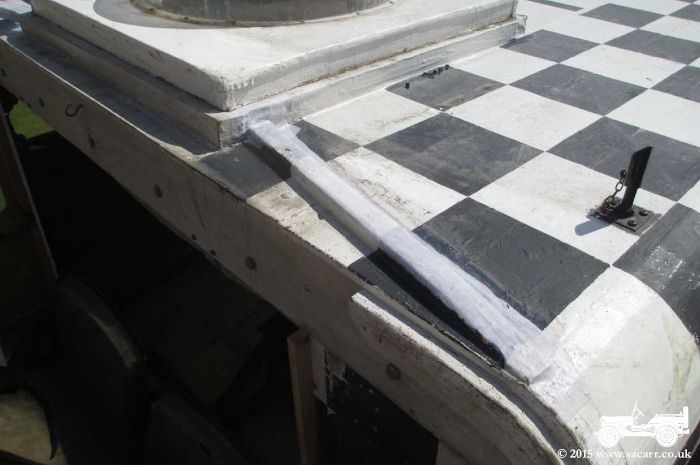

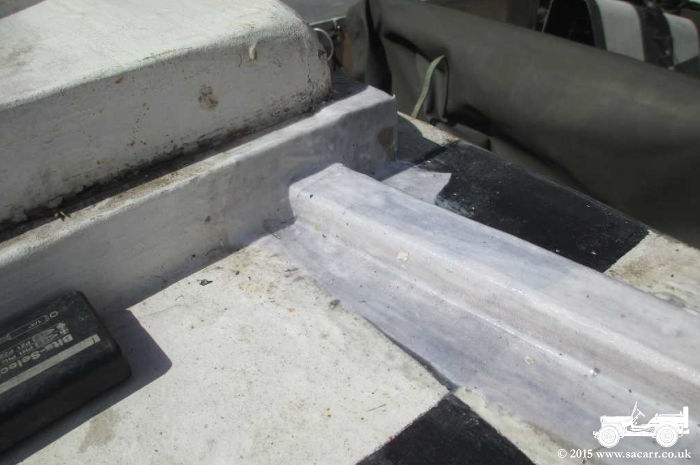

While working on that, I checked the roof underneath, and found the fabric lifting a little along the edges of the batterns which stop water running forwards into the cab. The areas were given a light sand before being painted with waterproof PVA glue. While wet, a strip of fabric was laid over the battern and the lifting edge of the old fabric, and PVA worked through with a stiff brush before being left to bake in the sun.

There wasn't time to paint these again, but as they are hidden under the canvas, it wasn't too much of an issue for now. However, at some point I'd like to get a coat of exterior white over the area for additional sealing. After they were dry, the cab canvas was re-attached, just in time for some heavy rain that evening! Thankfully, the canvas had dried properly and the water sat in beads on the surface.


Aug 8/9th

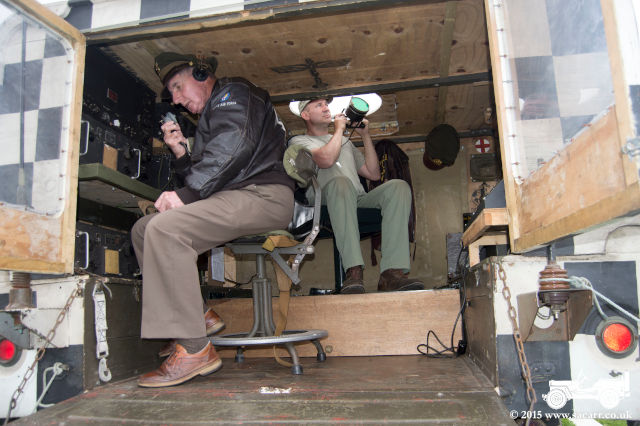

The seat complete and in action at Croft Nostalgia. A sample of material has been purchased and it being experimented on for suitability for the seat cushion.


Aug 1st

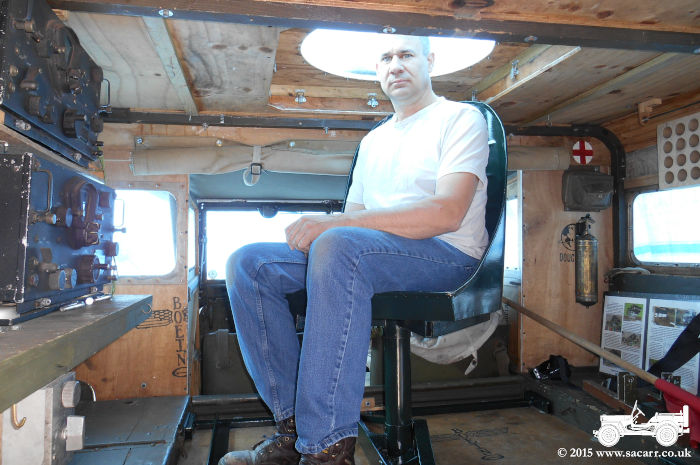

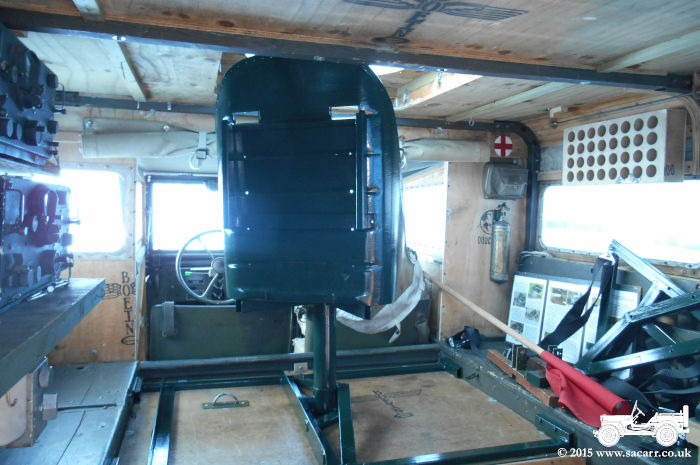

All done except for the seat cushion! Since the height of the seat was dropped a little to allow enough clearance to lift it over the pedestal, I've found it has a much greater range of rotation, spinning from its position in the first picture, all the way clockwise for about 300 degrees.

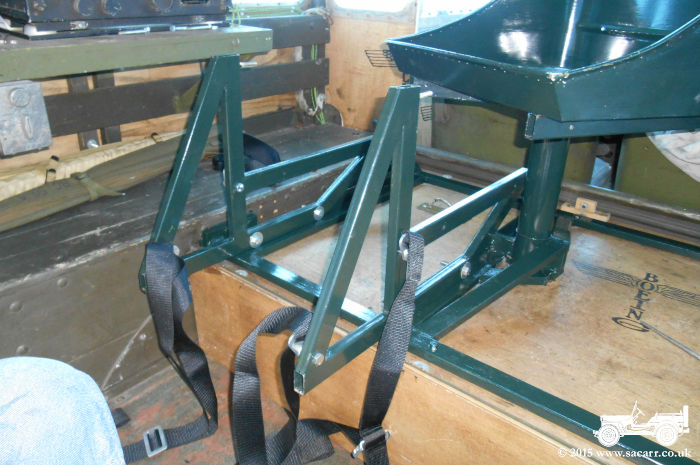

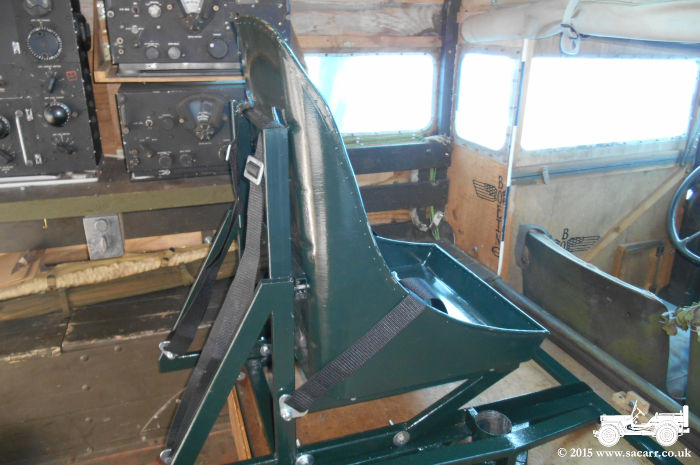

Even without the cushion, the height isn't too bad, so once that is made, it should be spot on. I've got my eye on some PVC coated fabric that might do, but I'm waiting for a sample to be sure. The easiest way to rig the seat for transport seems to be to fit the transit frames to the floor first, without bolting them up tight, then spin the chair 180 degrees and lift it off the pedestal straight onto the frames. The seat is quite heavy and cumbersome to lift with the frames attached too.

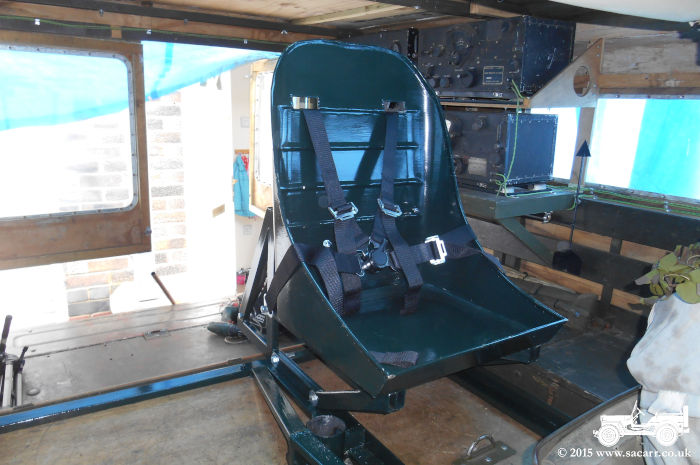

All bolted down and ready for Croft Nostalgia show. The pedestal fits in one of the front lockers when not in use.
